Insulating joint female/female PN10 for gas/water

Insulating-joint-female/female-pn10-for-gas/water

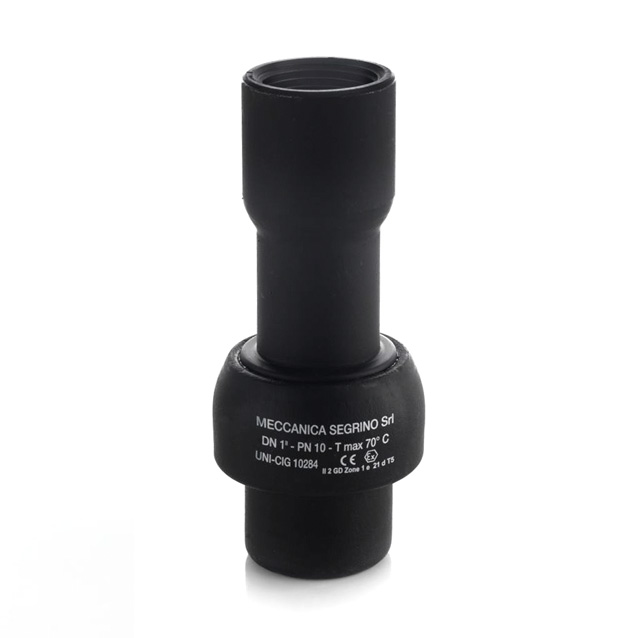

PN10 isolation joints are steel joints used for the sectioning of low pressure (10 kg/cm2) service lines for gas and water. Isolation joints provide cathodic protection in all piping systems and serve as a positive leak proof long lasting block against the flow of electrical current. The installation of insulating joints on service lines guarantees a superior security of the pipeline and significantly reduce maintenance costs.
The Female-Female PN10 joints are threaded joints (internal parallel threads ISO7/EN10226-1) completely factory assembled. These characteristics make the installation easy and fast. Female Female PN10 joints are available in small diameters ranging from ¾ in up to 2 in (see the whole range of diameters available in the table below).
PN10 Female Female isolation joints are supplied from stock.
Meccanica Segrino isolating joints are manufactured in accordance with the requirements of UNI-CIG, ASTM and API.

Insulating Joints tested and manufactured in accordance to UNI-CIG 10284

Working
Temperature		 Electric
insulation 		Dielectric
resistance		 Testing
pressure		 Working
pressure
-10°C + 70° C 10 Mohm 3.0 Kv 15 Kg/cm2  10 Kg/cm2
Download technical sheetspec class pn10_eng_ff
  • Meccanica Segrino - Giunto Isolante femmina/femmina PN10 per gas e acqua / Isolation joint female/female PN10 for gas/water
  • Meccanica Segrino - Giunto Isolante femmina/femmina PN10 per gas e acqua / Isolationjoint female/female PN10 for gas/water

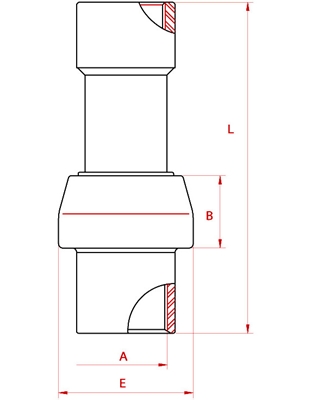

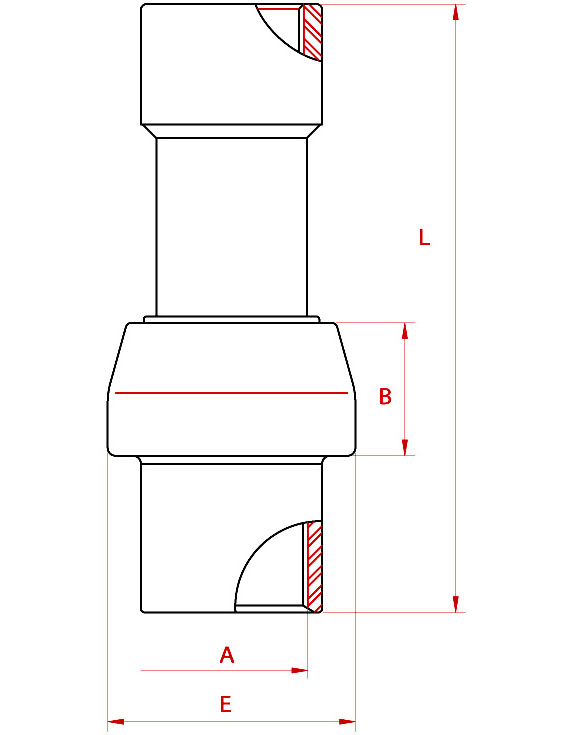

The dimensions reported in the table are in millimeters (mM)

Product Code ND A E B L Weight (in Kg)
FF020 3/4" 26,7 53 30 125 0,6
FF025 1" 33,4 60 32 142 0,9
FF032 1" 1/4 42,2 71 35 165 1,3
FF040 1" 1/2 48,3 77 37 175 1,5
FF050 2" 60,3 90 38 180 2,2
Mechanical Features
Hot forged socket: ASTM A 105 or equivalent
Hot forged spigot: API 5L gr.B or equivalent
Insulating ring in polycarbonate
Gasket ring in Hytrel 40 D Dupont
Epoxyphenolic painting
Thread ends: ISO7/EN10226-1
Certificates issued: EN 10204 3.1 and CE compliance


Il 2 GD Zone 1 e 21 d T5 Technical file: A01-MS
