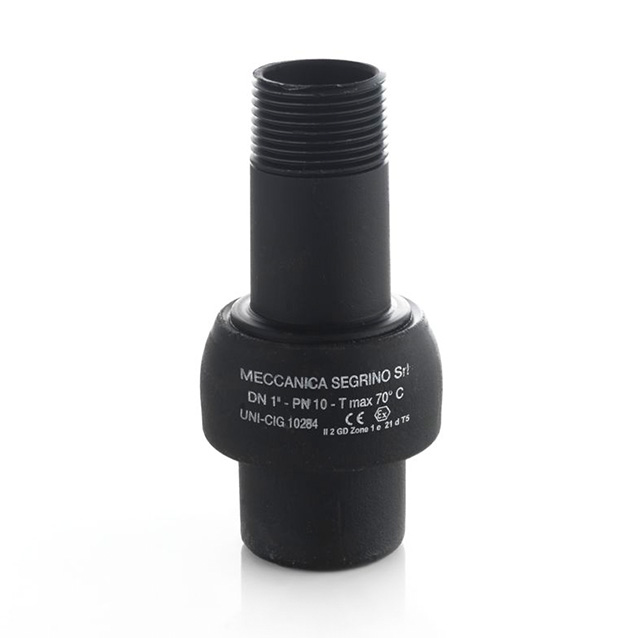

Insulating joint male/female PN10 for gas/water

PN10 insulating joints are steel joints used for the sectioning of low pressure (10 kg/cm2) service lines for gas and water. Insulating joints provide cathodic protection in all piping systems and serve as a positive leak proof long lasting block against the flow of electrical current. The installation of insulating joints on service lines guarantees a superior security of the pipeline and significantly reduce maintenance costs.

The Male-Female PN10 joints are threaded joints (external taper thread and internal parallel thread ISO7/EN10226-1) completely factory assembled. These characteristics make the installation easy and fast. Male Female PN10 joints are available in small diameters ranging from ½ in up to 4 in (see the whole range of diameters available in the table below).

PN10 Male Female insulating joints are supplied from stock.

Meccanica Segrino insulating joints are manufactured in accordance with the requirements of UNI-CIG, ASTM and API.Insulating Joints tested and manufactured in accordance to UNI-CIG 10284

Working Temperature	Electric insulation	Dielectric resistance	Testing pressure	Working pressure
-10°C + 70° C	10 Mohm	3.0 Kv	15 Kg/cm2	10 Kg/cm2

Download technical sheetspec class pn10_eng_mf

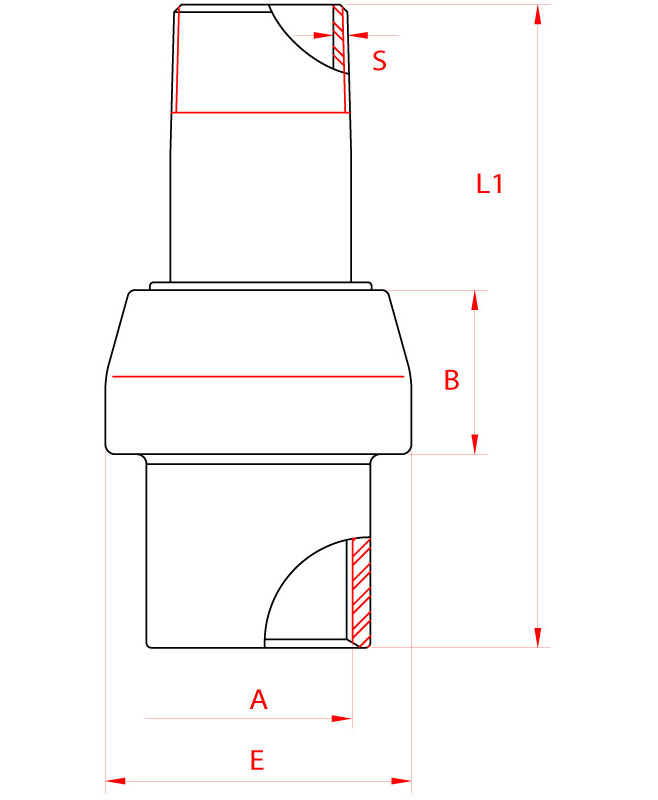

The dimensions reported in the table are in millimeters (mm)

Product Code	ND	A	E	B	L1	Weight (in Kg)
MF015	1/2"	21,3	46	28	100	0,4
MF020	3/4"	26,7	53	30	110	0,5
MF025	1"	33,4	60	32	120	0,7
MF032	1" 1/4	42,2	71	35	135	1,0
MF040	1" 1/2	48,3	77	37	145	1,2
MF050	2"	60,3	90	38	150	1,7
MF065	2" 1/2	76,1	113	53	170	3,0
MF080	3"	88,9	127	53	200	4,0
MF100	4"	114,3	156	65	200	6,5

Mechanical properties

Hot forged socket: ASTM A 105 or equivalent

Hot forged spigot: API 5L gr.B or equivalent

Insulating ring in polycarbonate

Gasket ring in Hytrel 40 D Dupont

Epoxyphenolic painting

Threads ends: ISO7/EN10226-1

Certificates issued: EN 10204 3.1 and CE compliance

Il 2 GD Zone 1 e 21 d T5 Technical file: A01-MS
